53 FT · overview

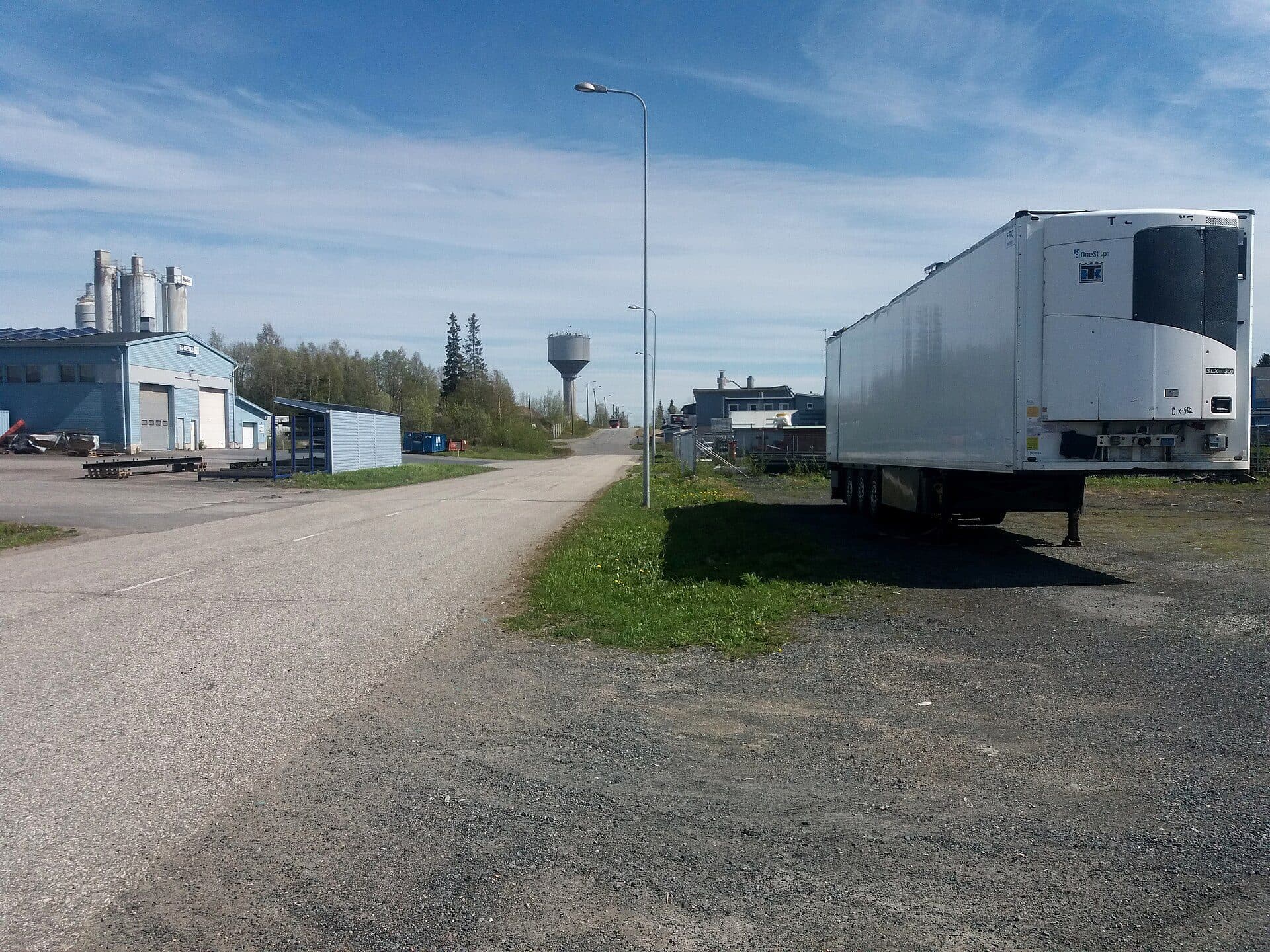

Reefer at a glance
53 ft L × 102 in W × 13 ft 6 in H
Insulated 53-foot trailers with a self-contained refrigeration unit for produce, frozen food, dairy, pharmaceuticals and other temperature-sensitive cargo.
- Length
- 53 ft
- Range
- –20 to 70 °F
- Pallets
- 26
In the field

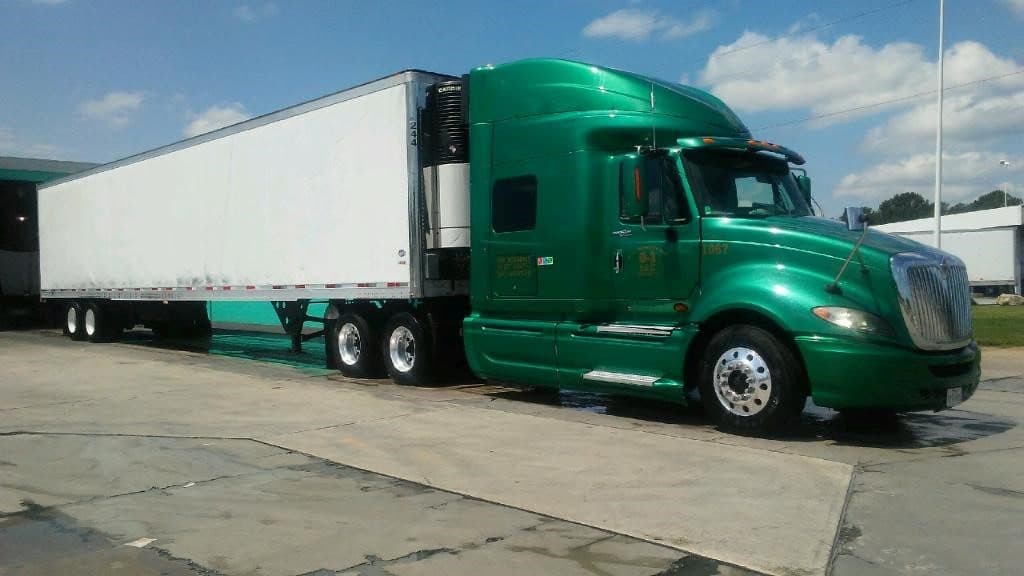

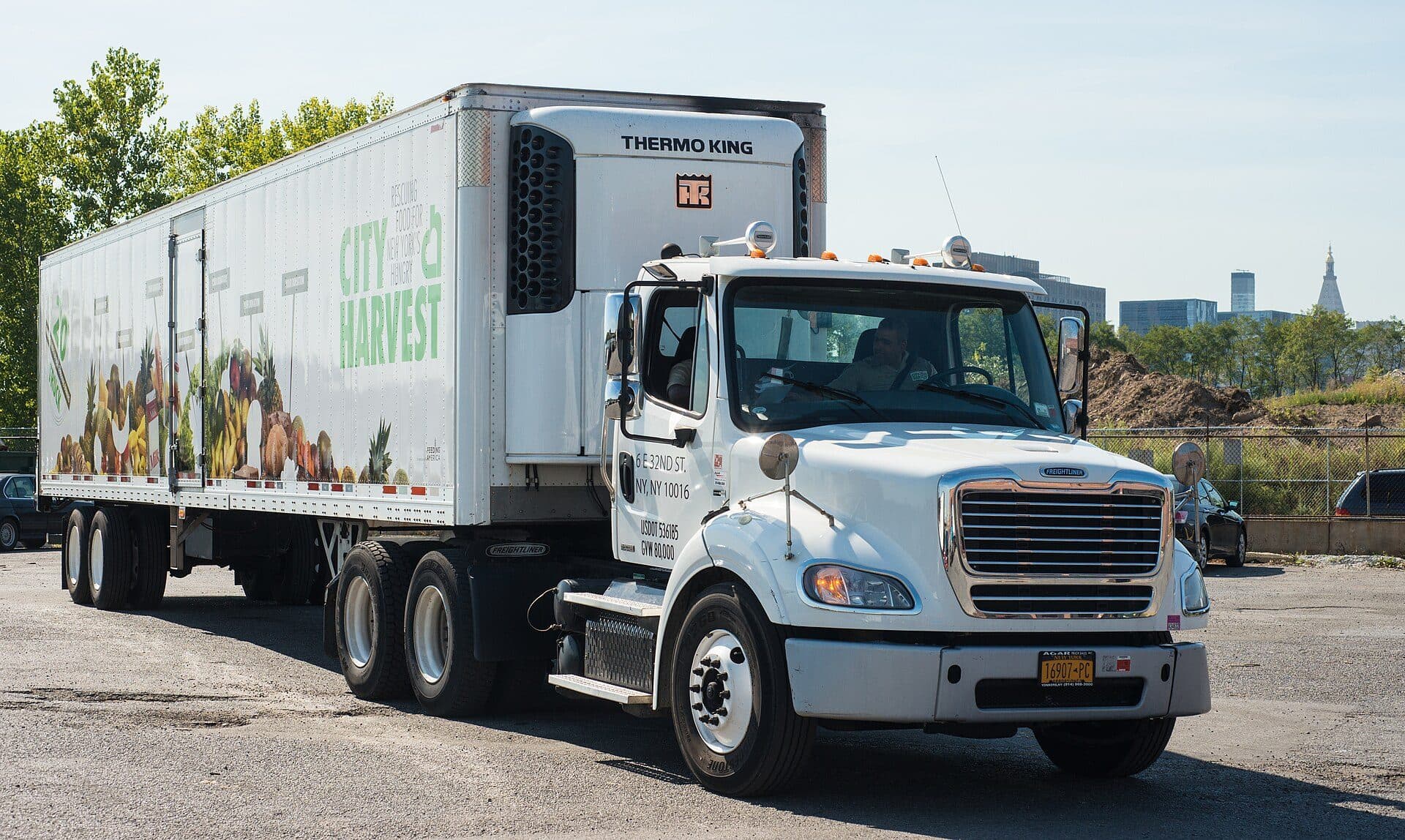

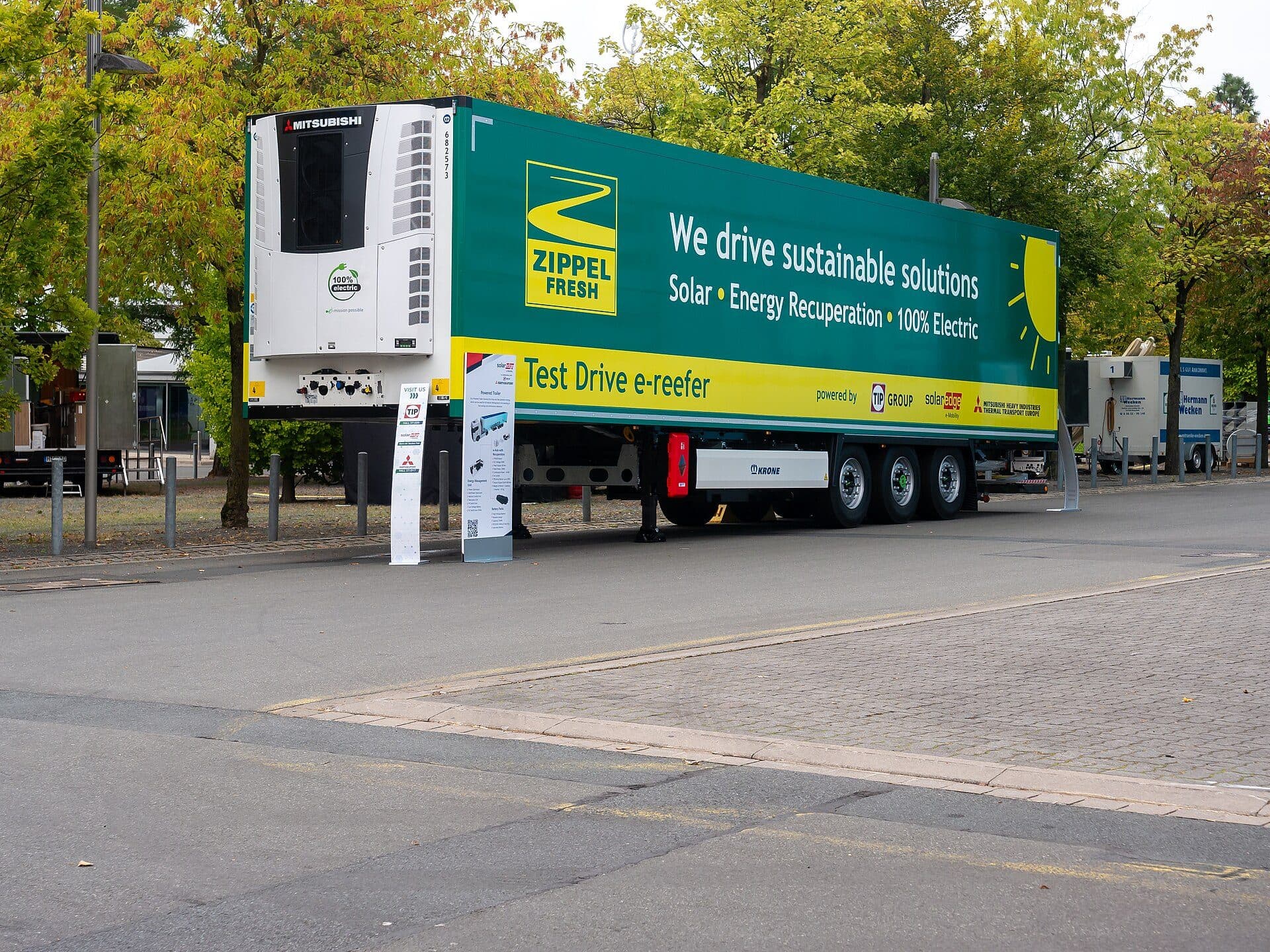

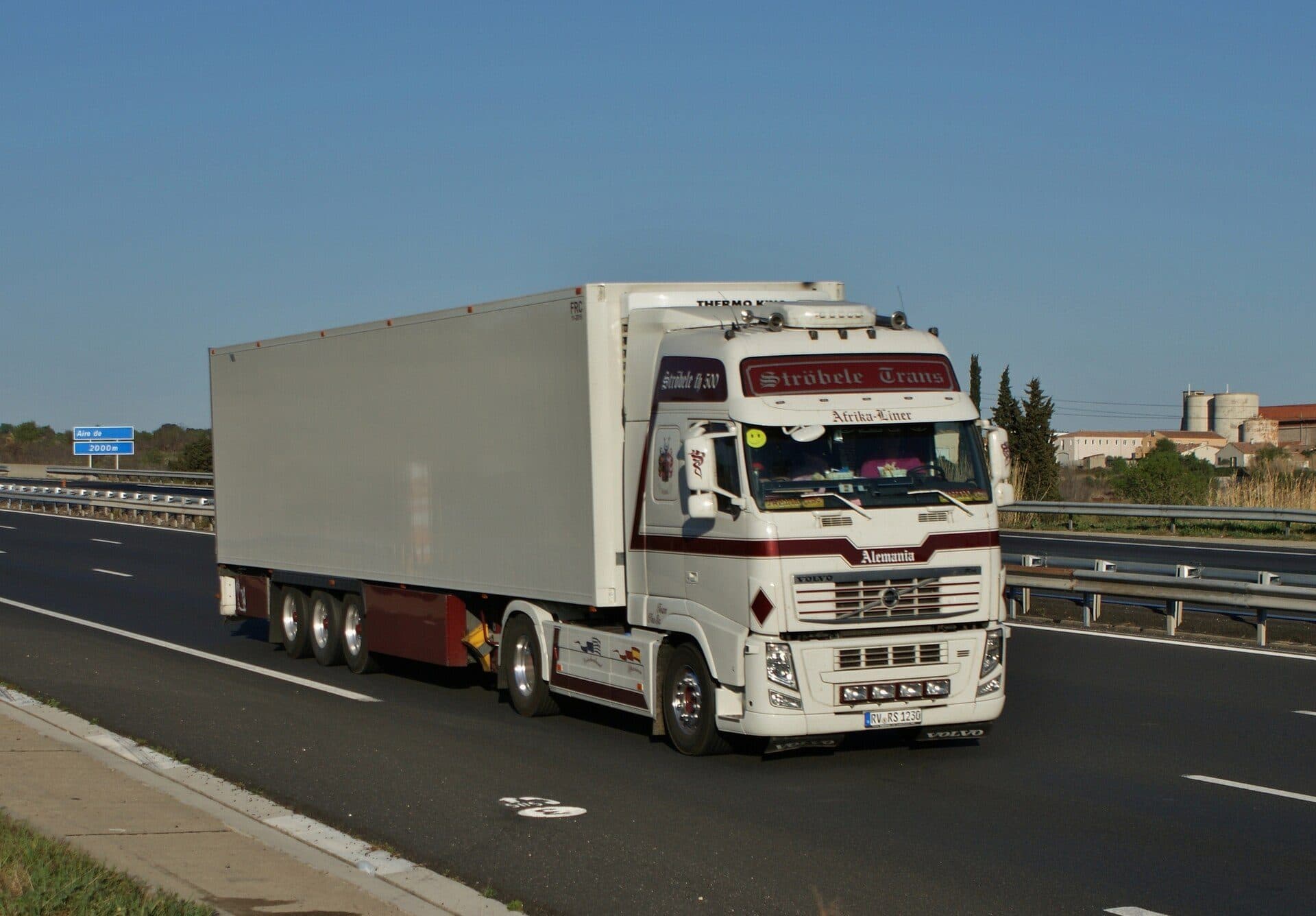

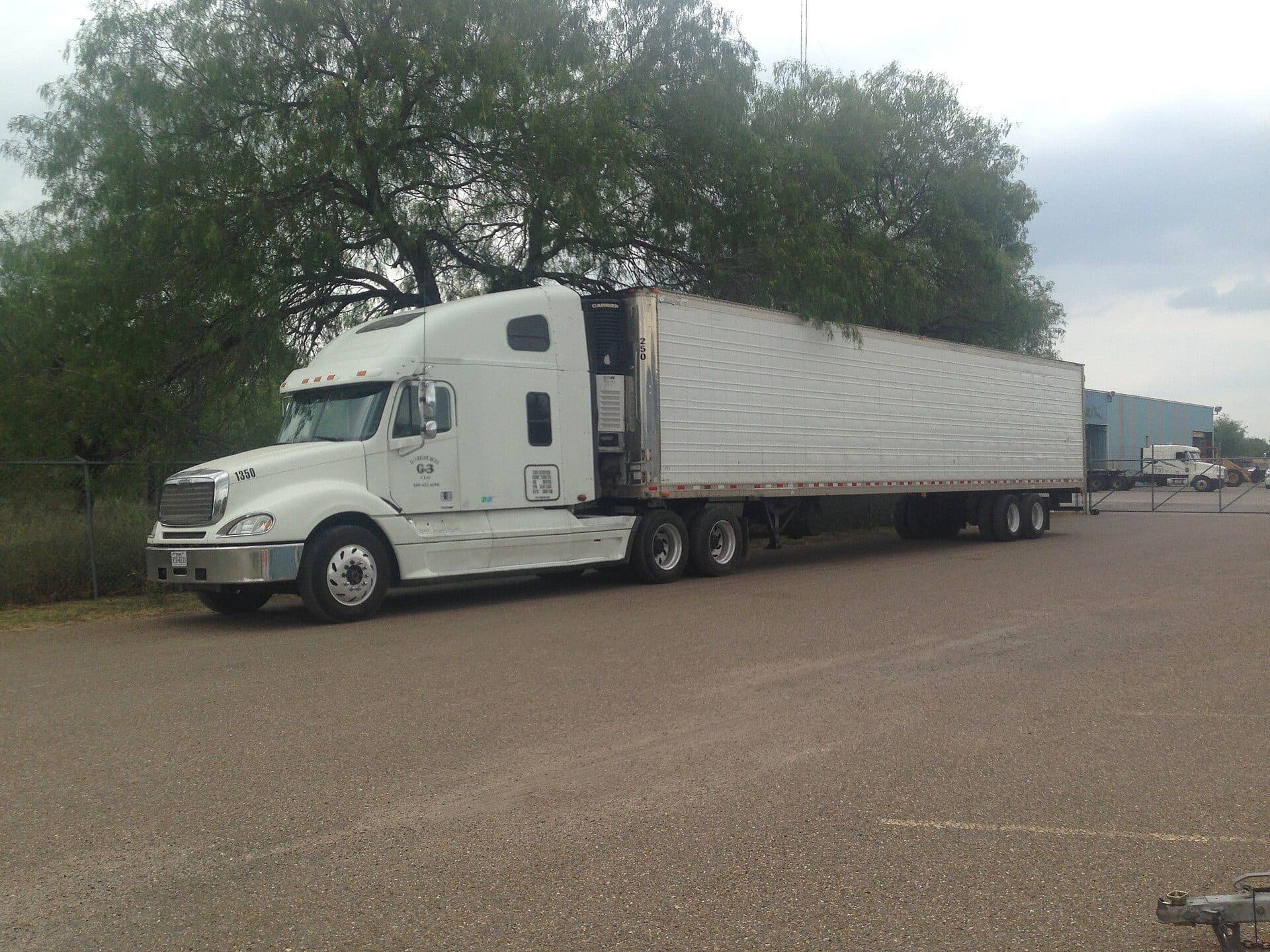

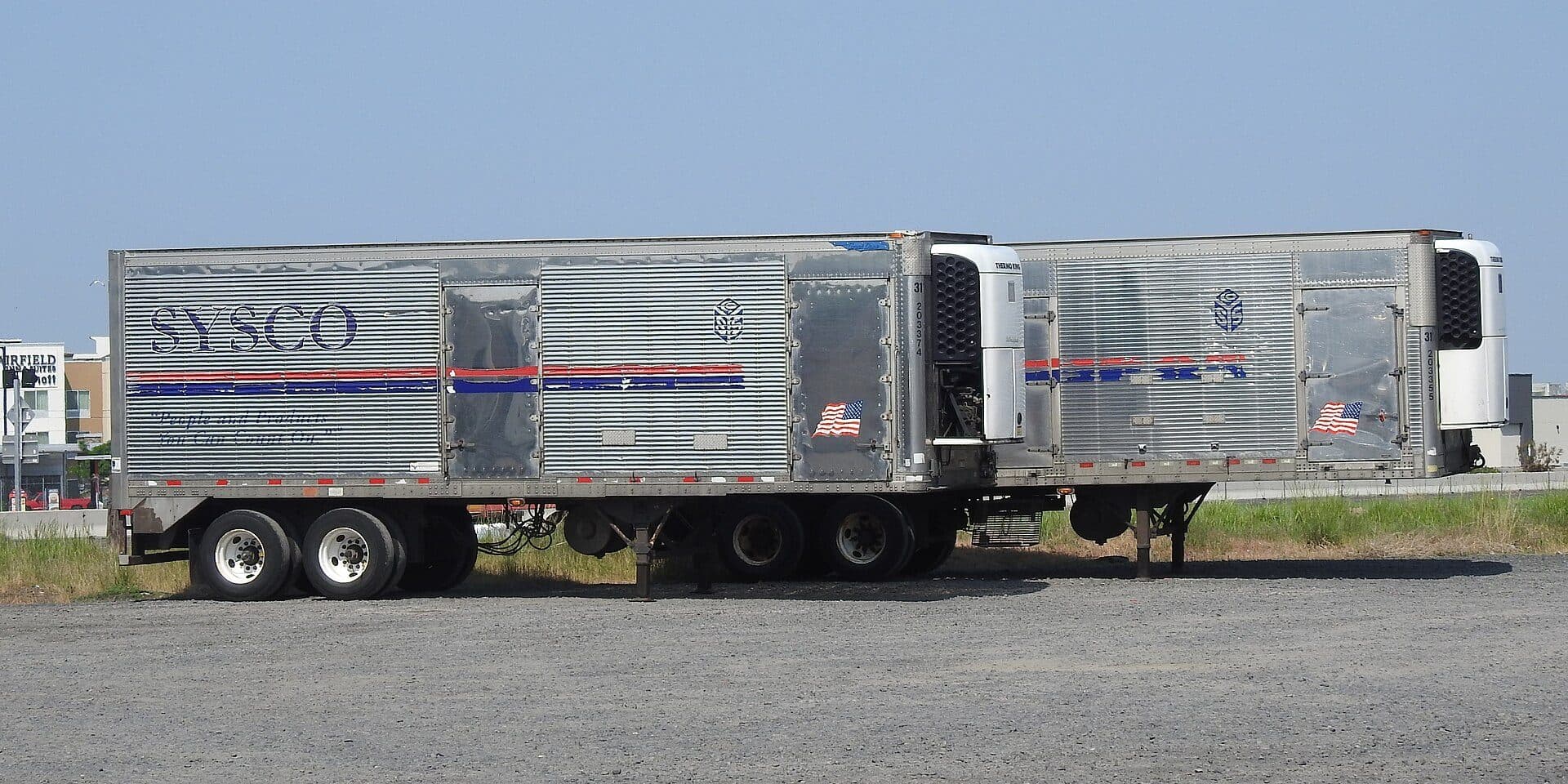

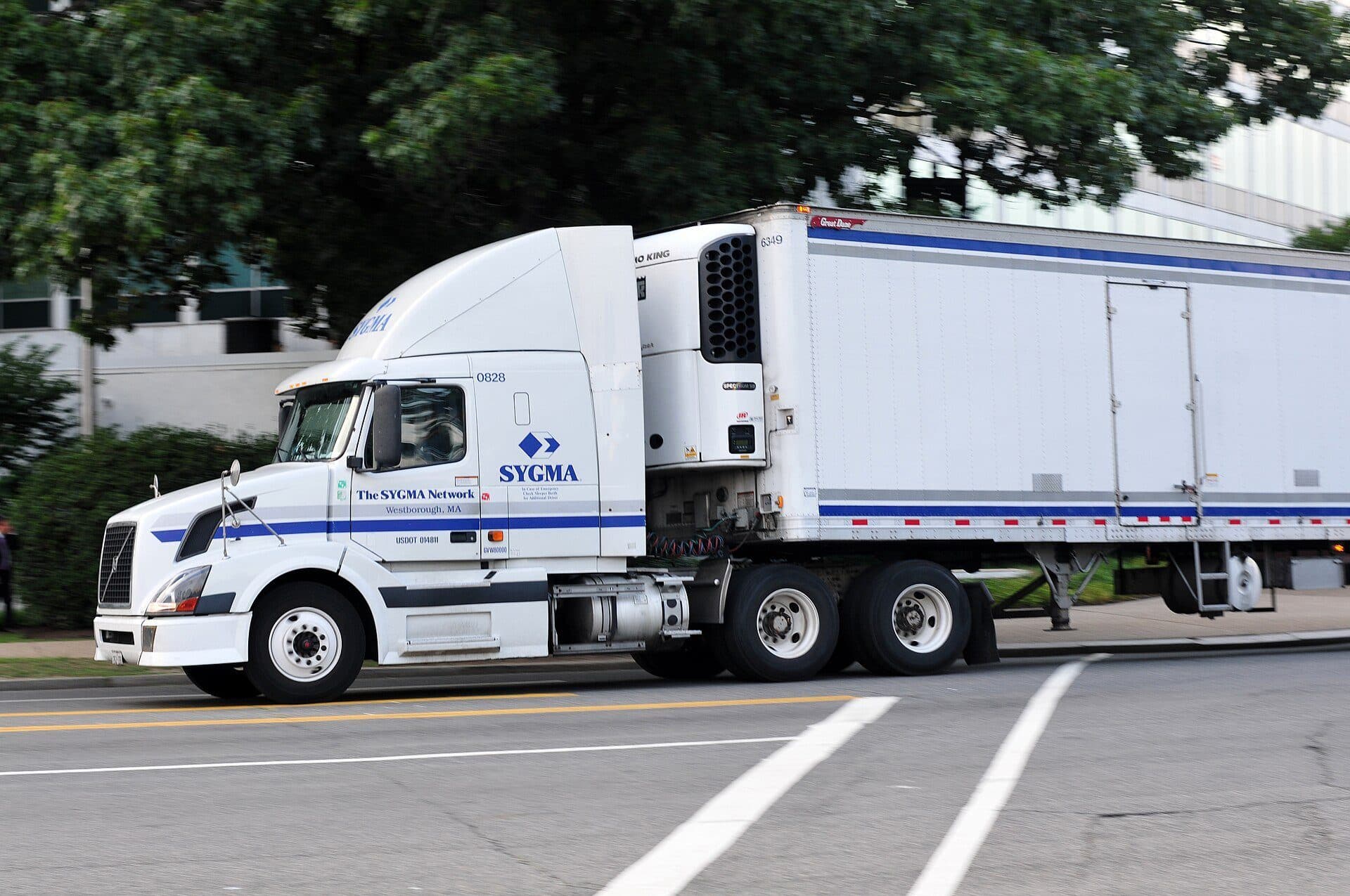

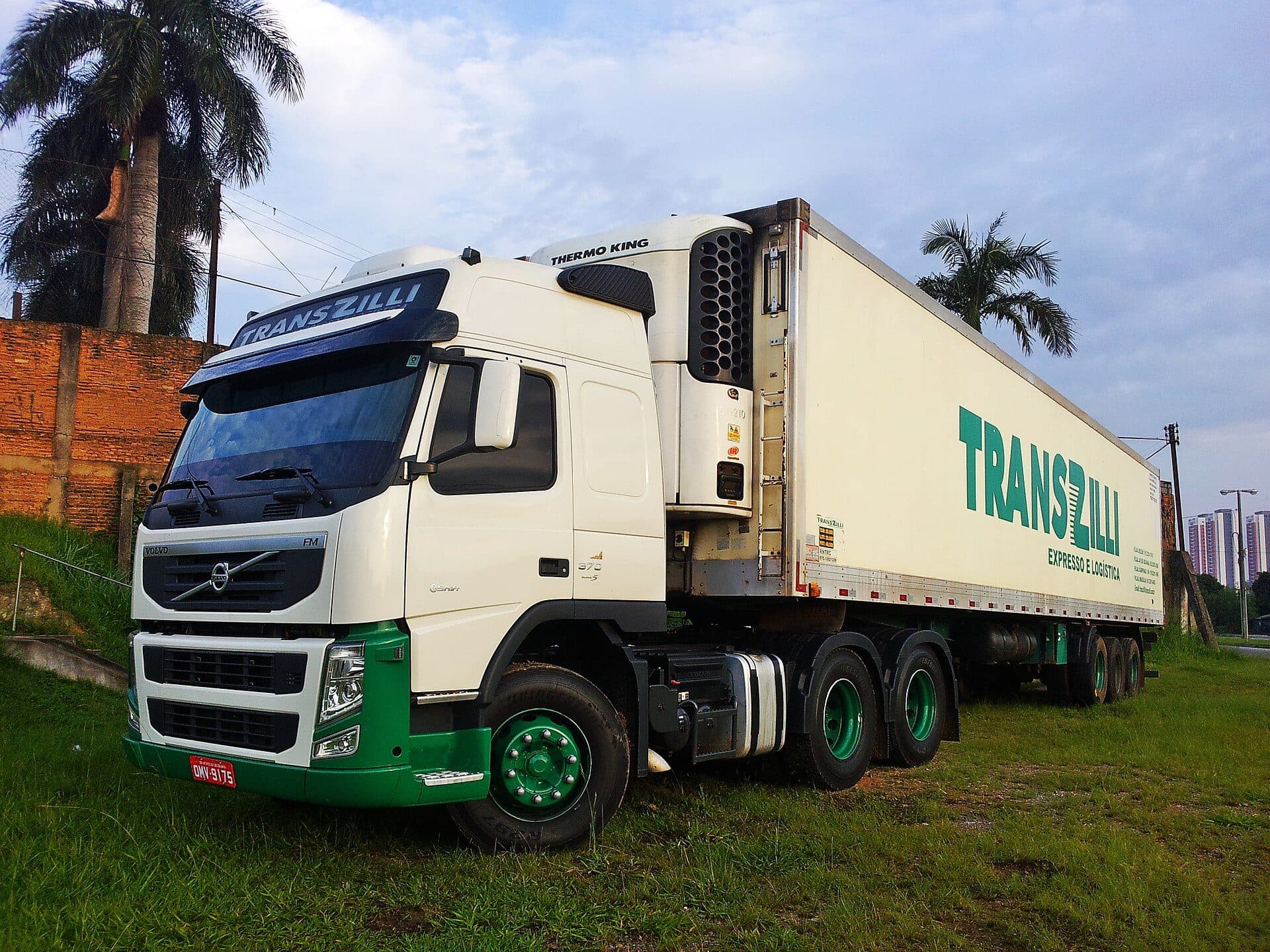

Reefer at work
- 01
- 02
- 03
- 04
- 05
- 06
- 07
Overview

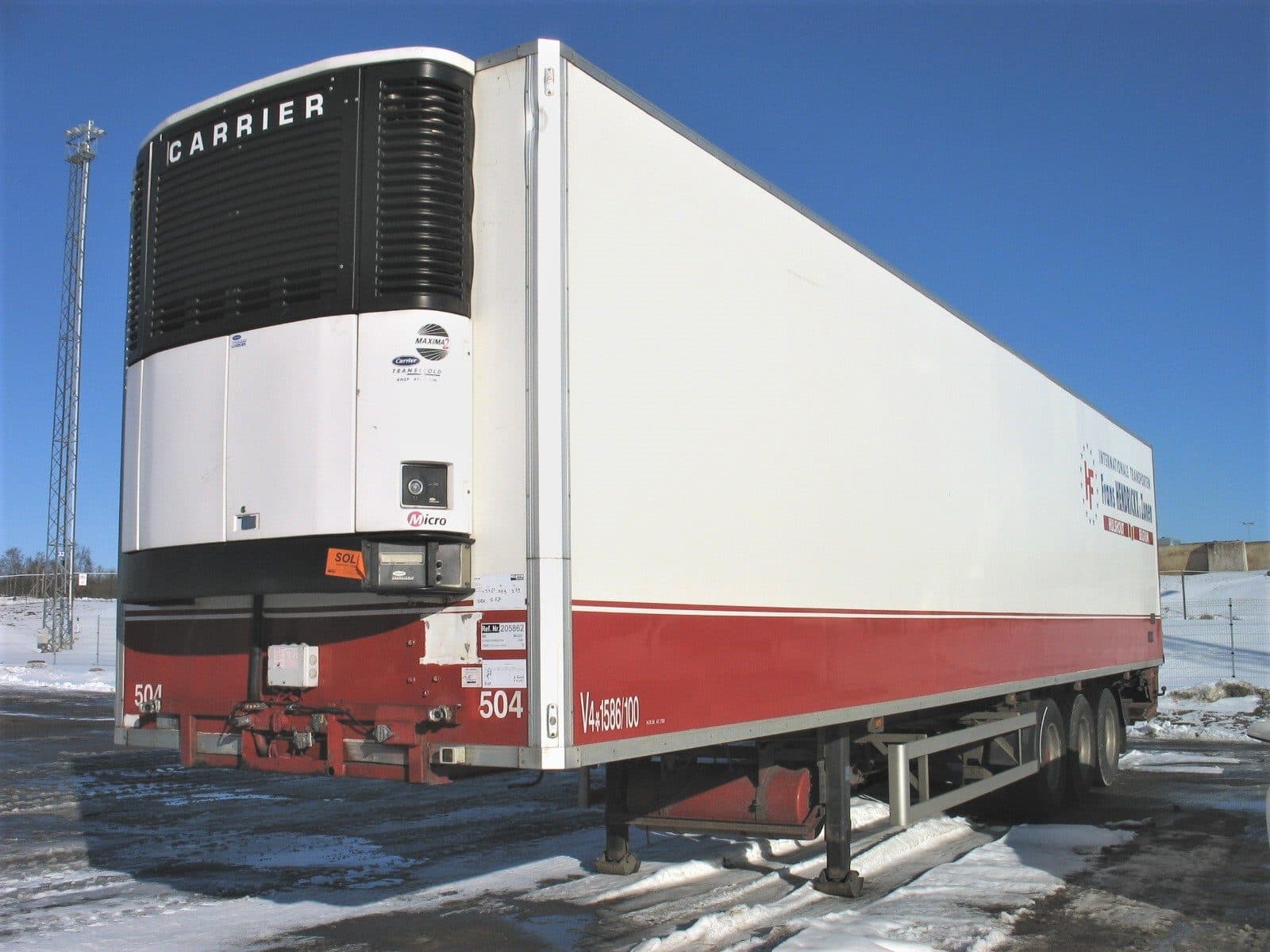

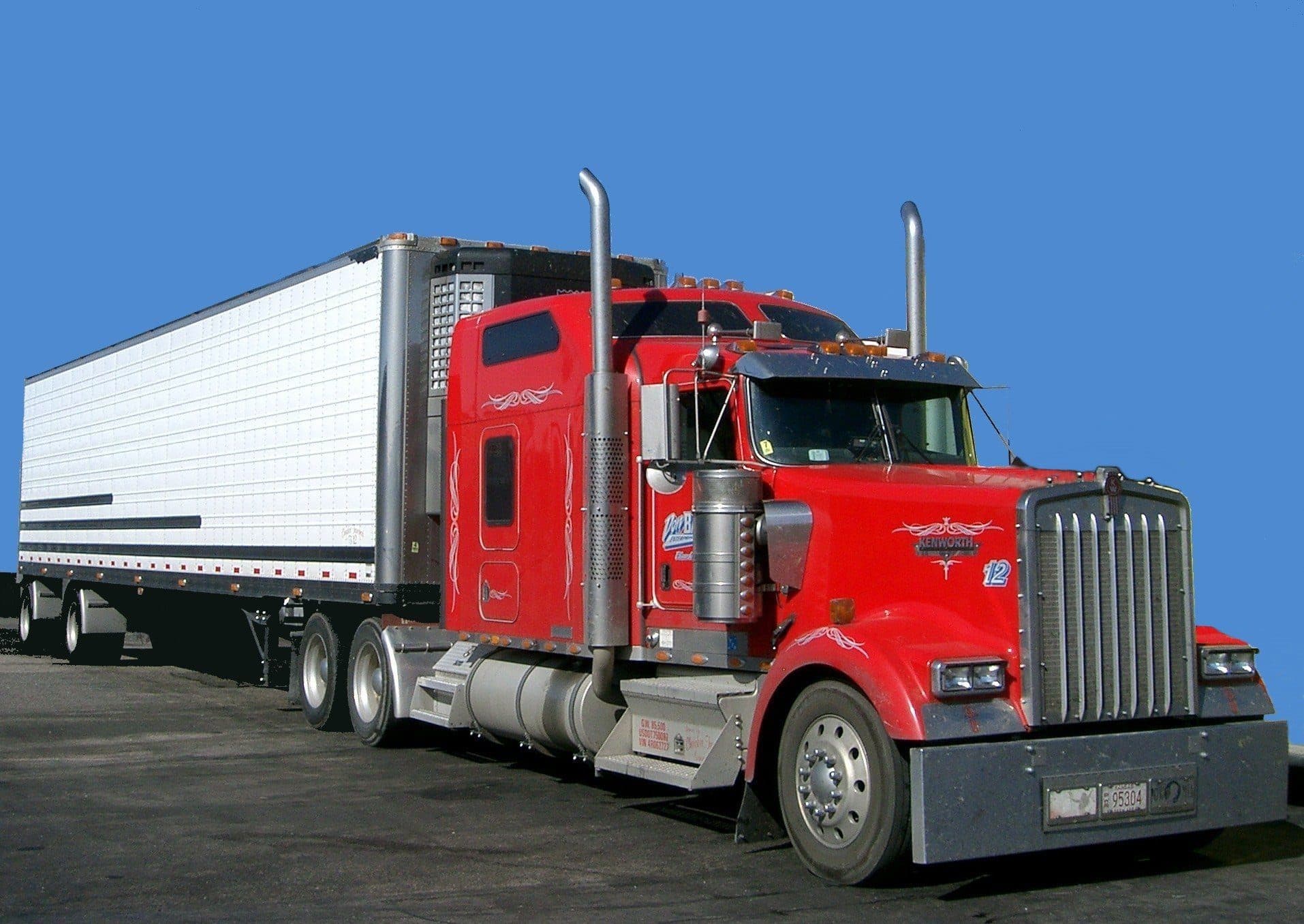

A reefer pairs an insulated box with a diesel-powered refrigeration unit mounted on the nose, holding a set point from deep-frozen to cool for the whole run.
Air chutes and ducted floors move conditioned air through the load. Thick insulated walls cost a little interior width compared with a dry van, but keep the cold chain intact on long hauls.

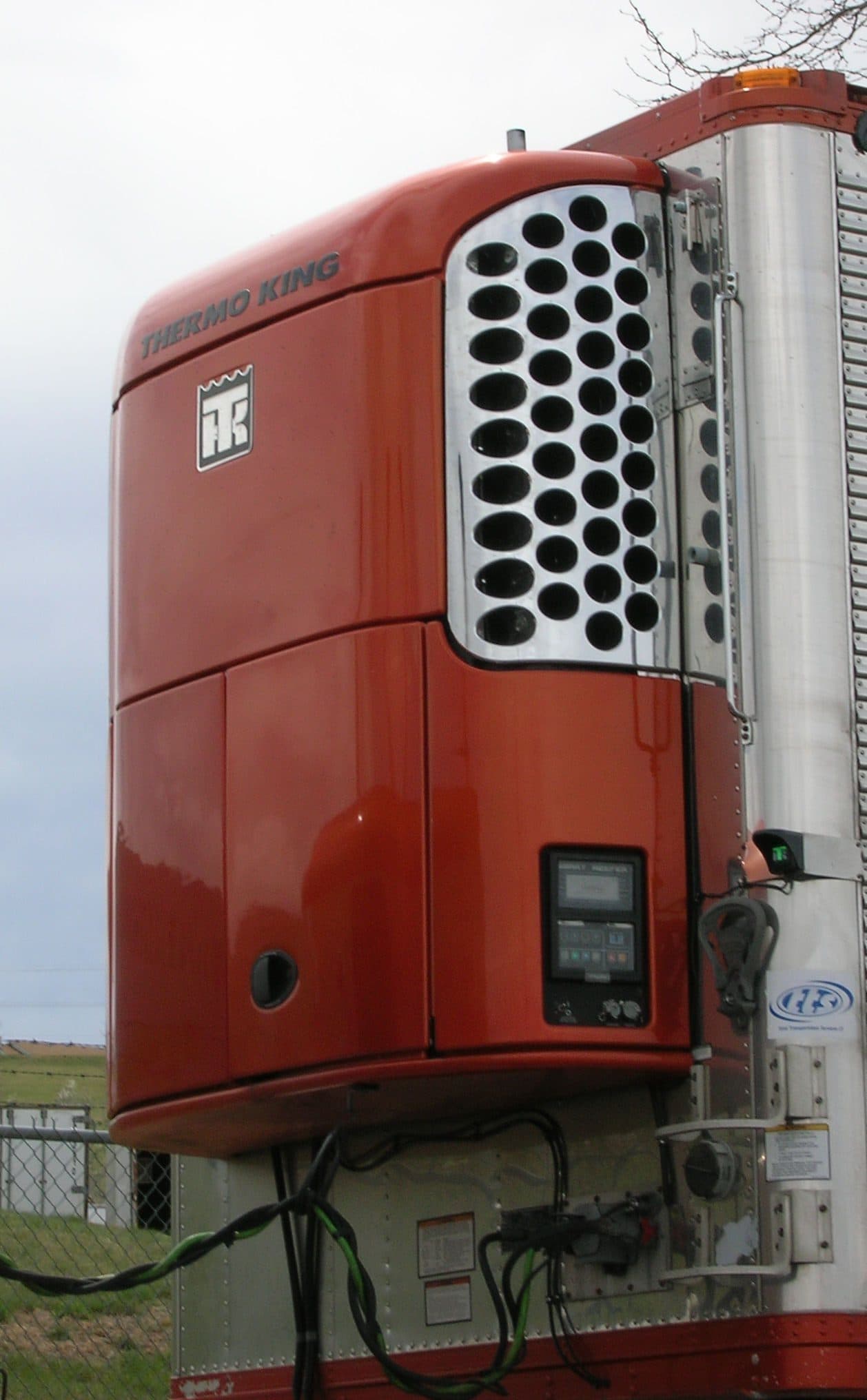

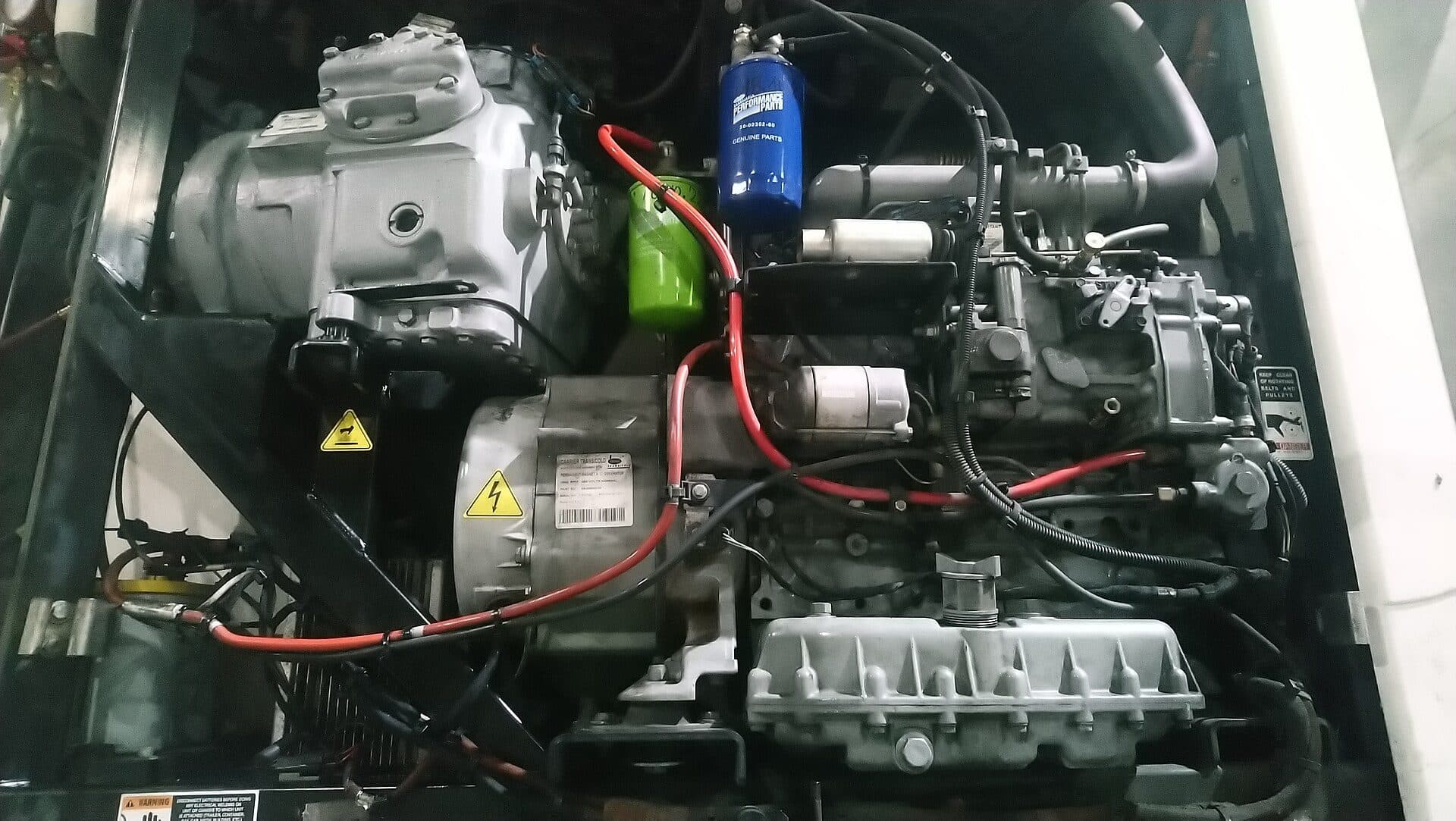

- Self-contained diesel refrigeration unit (Thermo King or Carrier class)
- Typical set-point range ≈ –20 °F to +70 °F, unit-dependent
- Insulated walls, ducted floor and ceiling air chute
- Continuous or cycle-sentry run modes; multi-temp on request
Technical specifications
| Exterior length | 53 ft |
|---|---|
| Exterior width | 102 in |
| Overall height | 13 ft 6 in |
| Interior length | ≈ 52 ft |
| Interior width | ≈ 98–99 in |
| Interior height | ≈ 100–104 in |
| Pallet positions | 26 standard (48 × 40 in) |
| Temperature range | ≈ –20 °F to +70 °F* |
| Reefer fuel tank | ≈ 50 gal (unit-dependent) |
| Typical payload | ≈ 42,000–44,000 lb* |
| Floor | Aluminum ducted (T-floor) |
* Figures are typical for this trailer class. Exact dimensions, ratings and equipment vary by manufacturer and unit and are confirmed with your quote.
Ideal for
Fresh produce
Fruit and vegetables at chilled set points with airflow through the load.
Frozen food
Ice cream, proteins and frozen meals held well below zero.
Meat, poultry & dairy
Tight temperature tolerances for perishable proteins and dairy.
Pharmaceuticals
Controlled-temperature freight where you document the set point.
Floral & chemicals
Cargo that must not freeze or overheat in transit.
